Enlarging and Dividing the Original into Copies

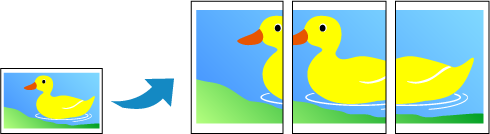

You can enlarge one page of data and print it by dividing into multiple sheets of paper. By pasting the printed sheets together, you can create the large prints of A0 or ANSI-E size.

  • If the original is A4 size: Use A1 roll paper and A2 roll paper to create the prints equivalent to A0 size.

  • If the original is Letter size: Use 24-inch, 18-inch, and 17-inch wide roll paper to create the prints equivalent to ANSI-E size.

Note

  • The number of output paper sheets and the size of the pasted area will vary depending on the combination of the dividing method and output paper size.

  • There is a small margin on the left and right sides of the output paper, which will remain when the sheets are pasted together.

  1. Load paper.

  2. Load the original on the document platen.

  3. Select Copy on the HOME screen.

    Note

    • If both roll paper and cut sheet are loaded, a screen will appear asking which one to use. Select Copy to roll paper.

  4. Select Split & enlarge copy.

  5. Check message and select OK.

  6. On the Copy standby screen, specify settings as necessary.

    For more on the setting items:

  7. Press the Black button or the Color button.

    The printer starts copying.

    Note

    • To cancel copying, press the Stop button.

  8. Paste the printed sheets together.
