Printer Stand

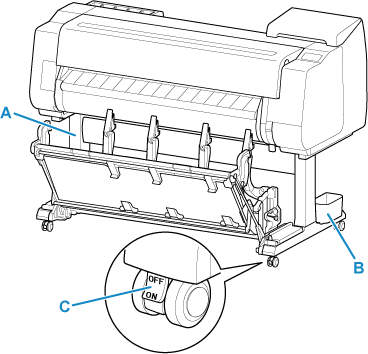

Stand Parts

A: Stand Unit
A stand that holds the printer. Equipped with casters to facilitate moving the printer.
B: Accessory Pocket
Stores the printer's accessories.
C: Locking Caster
The casters can be locked securely. When moving the printer, be sure to unlock the 4 casters. If you move it while the locking casters are locked, the floor may become scratched.

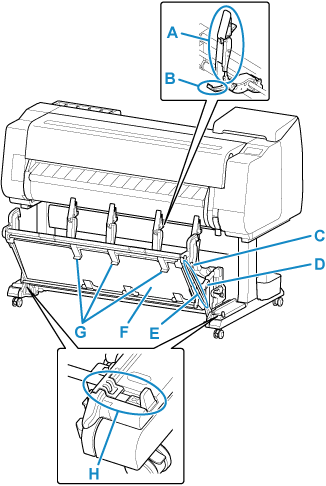

Parts of the Basket

The following Basket can be used with the printer.

TX-4300 / TX-5430 : Basket BU-09

TX-3300 / TX-5330 : Basket BU-08

A: Paper Guide
Guides the output printed documents to the basket.
B: Adjustable Stopper
Extends according to the paper size when using the basket in the extended position A.
C: Support Rod
When changing the position of the basket, change the position of the Support Rod.
D: Basket Release Lever
Releases the basket when it is set in the extended position B and the lever is pulled forward.
E: Basket Arm
You can store the basket by laying it horizontally.
F: Basket Cloth
Catches the ejected printed documents.
G: Basket Ejection Guides
This guide supports output paper when using the basket in the extended position B.
H: Basket Lock Lever
Restrict the movement of the basket arm by moving it to the lock side.
