Paper Is Blank/Printing Is Blurry/Colors Are Wrong/White Streaks Appear

Printing Is Blurry

Colors Are Wrong

White Streaks Appear

1. Check1 Check paper and print quality settings.

   • Print Results Are Unsatisfactory

2. Check2 Check the remaining ink level.

   When an ink tank runs out of ink, refill the ink tank.

   If the remaining ink level is below the lower limit line (A), refill the ink tank with the corresponding color of ink.



3. Check3 Print a nozzle check pattern and clean the print head if necessary.

   1. Step 1 Print the nozzle check pattern.

      If the pattern is not printed correctly, check if the ink tank for the problem color is empty.

      if the ink tank is not empty, go to the next step.

   2. Step 2 Check the printed nozzle check pattern.

   3.

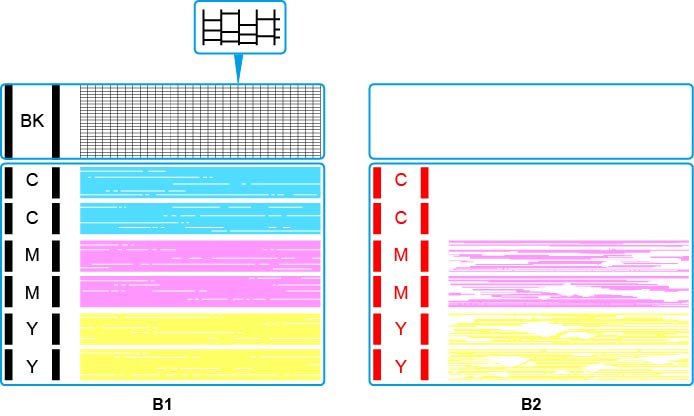

      If the nozzle check pattern is similar to B1:

      • Step 3

      If the nozzle check pattern is similar to B2:

      • Step 6

   4. Note

      • For details on printing the nozzle check pattern.

        • Printing the Nozzle Check Pattern

   5. Step 3 Clean the print head.

   6. After cleaning the print head, print the nozzle check pattern and check the result.

      • Cleaning

      If it still does not improve, go to the next step.

   7. Step 4 Clean the print head again.

      After cleaning the print head again, print the nozzle check pattern and check the result.

      If it still does not improve, go to the next step.

   8. Step 5 Clean the print head deeply.

   9. After cleaning the print head deeply, print the nozzle check pattern and check the result.

      • Deep Cleaning

      If it does not improve, turn off the printer, wait for more than 24 hours without unplugging the power supply, and go to the next step.

   10. Step 6 Clean the print head deeply again.

   11. After cleaning the print head deeply again, print the nozzle check pattern and check the result.

       • Deep Cleaning

       If it still does not improve, go to the next check.

4. Check4 Perform an Ink Flush.

   • How to Do Ink Flush

   Note

   • To minimize image issues, we recommend printing once a week.

5. Check5 When using paper with one printable surface, make sure paper is loaded with printable side facing up.

   Printing on the wrong side of such paper may cause unclear prints or prints with reduced quality.

   Load paper with the printable side facing up.

   Refer to the instruction manual supplied with the paper for detailed information on the printable side.

• When copying, see also the sections below:

1. Check6 Is platen glass dirty?

   Clean the platen glass.

   • Cleaning the Platen Glass and Document Cover

2. Check7 Make sure original is properly loaded on platen glass.

   • Loading Originals

3. Check8 Is original loaded with side to be copied facing down on platen glass?

4. Check9 Did you copy a printout done by this printer?

   If you use a printout done by this printer as the original, print quality may be reduced depending on the condition of the original.

   Reprint from the computer if you can reprint from it.

5. Note

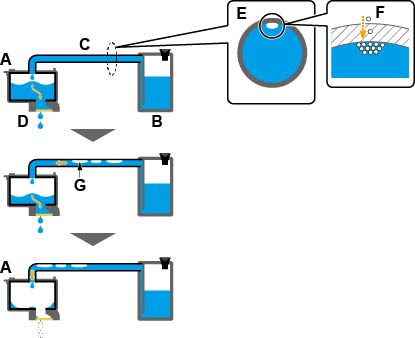

   • Air may naturally enter the Print Head (A), which ejects ink, and the Tube (C), which connects it to the Ink Tank (B).If this air is carried to the head and accumulates there, it may become difficult to dispense the Ink (D).



   • The cross-section of the Tube (E) shows that a small amount of air (F) enters.This minute amount of air is carried along with the ink during printing and does not affect the result. However, if the printer is not used for a long time, large bubbles (G) form.Large air bubbles are transported to the Print Head. When the amount of air inside the Print Head (A) increases to a certain level, the flow of ink becomes restricted, resulting in blurred images or blank pages being ejected.
