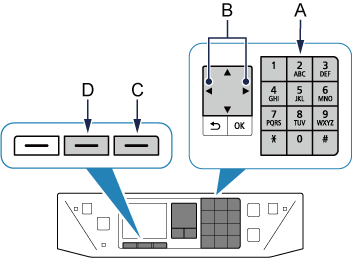

On this printer, use the Numeric buttons (A) to enter characters.
Multiple characters are assigned to each key. Press a key repeatedly to enter a character.
For details on assigned characters, see "Key Assignments" below.
<Key Assignments>
| Button | Lower case mode "abc" |
Upper case mode "ABC" |
Numeric mode "123" |
|---|---|---|---|
| 1 | 1 | ||
| 2 | abc | ABC | 2 |
| 3 | def | DEF | 3 |
| 4 | ghi | GHI | 4 |
| 5 | jkl | JKL | 5 |
| 6 | mno | MNO | 6 |
| 7 | pqrs | PQRS | 7 |
| 8 | tuv | TUV | 8 |
| 9 | wxyz | WXYZ | 9 |
| 0 | 0 | ||
| # | . @ - _ SP * # ! " , ; : ^ ` = / | ' ? $ % & + ( ) [ ] { } < > | ||
| * | Each time you press this button, the entry mode changes between lower case mode "abc," upper case mode "ABC," and numeric mode "123." | ||
SP: Indicates single space.
- To enter characters assigned to the same key successively (e.g., enter "N" and then "O"), press the
button (B) to move the cursor by one character to the right first. - To insert a space, move the cursor to the target position using the
or button (B), and then press the right Function button (C). - To insert characters, move the cursor to the character on the right of the target position using the or button, and then enter characters.
- To delete a character, move the cursor to the target character using the or button, and then press the center Function button (D).
