Wired Connection

Follow the procedure below to set up a printer.

  1. Make sure printer is turned on before starting wired connection setup.

    If the power is on, the ON lamp (A) will be lit.

    figure: ON lamp lights up

    Important

    • If printer is performing cleaning, print head alignment, or other processes, wait for the process to finish, before starting setup.

  2. You will need an Ethernet cable (sold separately).

    figure: Ethernet cable

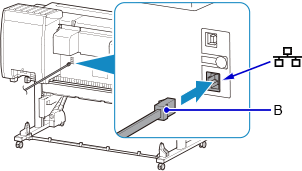

  3. Connect the printer and a network device (router, etc.) with an Ethernet cable (B).

    Do not connect to any other port.

    figure: Connecting Ethernet cable

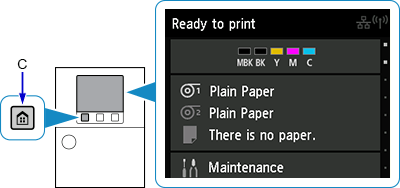

  4. Touch the HOME button (C).

    figure: Touch the HOME button.

  5. Tap LAN settings.

    HOME screen: Select LAN settings

  6. Tap Change LAN.

    LAN settings screen: Select Change LAN

  7. Tap Activate wired LAN.

    Change LAN screen: Select Activate wired LAN

  8. When connection is complete, Network status appears at the upper right of the screen.

    HOME screen

The network connection setup is now complete.
