WPS (PIN Code) Connection

  1. Select Other connection types and press OK button.

  2. Select WPS (PIN code method) and press OK button.

  3. Follow the on-screen instructions on a computer to set a PIN code on the wireless router.

  4. When the following screen appears, press OK button.

    Completion screen (Connected to the wireless router.)

    If a different screen appears, see "Troubleshooting."

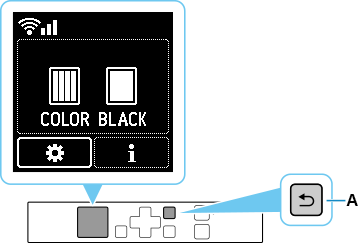

  5. Press the Back button (A) until the following HOME screen appears.

    The network connection setup is now complete.

    Once connection is complete, Wi-Fi ON icon appears at the lower left of the screen.

  6. Proceed with the settings according to your OS environment.
