Adjusting Tone

When printing black and white photos, you can produce the cooling effects of cool colors and the warming effects of warm colors.

figure:Cool Tone is selected
figure:Black and White is selected
figure:Warm Tone is selected

Cool Tone is selected

Black and White is selected

Warm Tone is selected

The procedure for adjusting tone is as follows:

  1. Select Quality & Media from the pop-up menu of the Print Dialog

  2. Selecting the paper with Media Type

    For paper for which the black and white tone can be adjusted, select the paper you want to use from "Paper Information List" and check the information.

  3. Set black and white photo printing

    Check the Black and White Photo Print check box.

    figure:Black and White Photo Print of Quality & Media in the Print dialog

  4. Select Color Options from the pop-up menu

  5. Adjusting monochrome tones

    Specify one of the following items from Tone. The selected value will be shown in the preview on the left side.

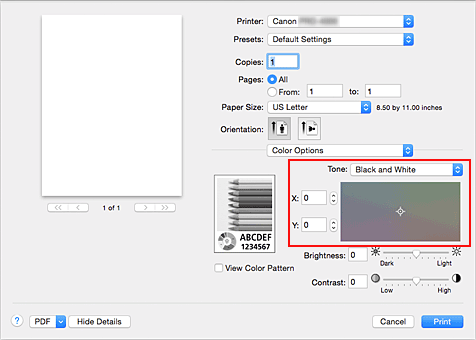

    figure:Tone of Color Options in the Print dialog
    Cool Tone
    This item adjusts color tones to cool shades (cool black). When you select Cool Tone, a value of -30 is entered for X, and a value of 0 for Y.
    Black and White
    This item adjusts color tones to neutral shades. When you select Black and White, a value of 0 is entered for X, and a value of 0 for Y.
    Warm Tone
    This item adjusts color tones to warm shades (warm black). When you select Warm Tone, a value of 30 is entered for X, and a value of 0 for Y.
    Custom
    You can adjust the color tones while checking the colors in the adjustment area.
    To adjust the color tones, either enter values directly or click the up/down arrows. When you enter values, set values in the range of -100 to 100 for X, and -50 to 50 for Y.
    You can also adjust the color tones by clicking or dragging the adjustment area with the mouse.
    If you select another color tone and then select Custom again, the values that were preset in Custom are restored.

    Important

    • Tone and X, Y (Monochromatic adjustment value) are displayed when Black and White Photo Print check box is selected for Quality & Media.

  6. If necessary, adjust monochromatic colors manually

    To adjust the color tones, either enter values directly to X or Y (Monochromatic adjustment value) or click the up/down arrows.
    You can also adjust the color tones by clicking or dragging the adjustment area with the mouse.

  7. Complete the setup

    Click Print.
    When you execute print, the color document is converted to grayscale data with adjusted tones. It allows you to print the color document in monochrome.

Important

  • If you select ColorSync for Color Matching, then Tone, X, and Y appear grayed out and are unavailable.
