Scaled Printing

The procedure for printing a document with pages enlarged or reduced is as follows:

Printing by Enlarging/Reducing Document to Specified Ratio

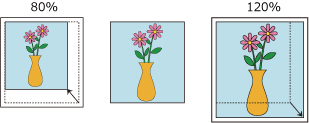

Set magnification rate.

  1. Select the printer

    In the Page Setup Dialog, select your model name from the Format For list.

    figure:Format For of Page Attributes in the Page Setup dialog

  2. Set scaled printing

    Specify the scaling factor in the Scaling box, and click OK.

    Note

    • Depending on the Scaling value that you set, an error message may be displayed.

  3. Complete the setup

    On the Print Dialog, click Print.
    When you execute print, the document will be printed with the specified scale.

Important

  • When the application software which you used to create the original has the scaled printing function, configure the settings on your application software. You do not need to configure the same setting in the Page Setup dialog.

Printing by Enlarging/Reducing Document to Match Roll Paper Width

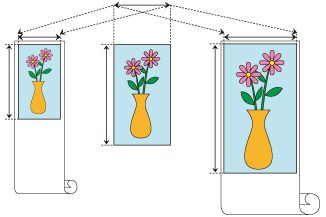

Matches the width of the roll paper

  1. Select Page Processing from Printer Options in the Print Dialog

  2. Set Fit Roll Paper Width to On

    Note

    • Depending on the Paper Size settings, the settings you can choose will differ.

  3. Complete the setup

    Click Print.
    When you print, the document is expanded or reduced to match the roll paper width and then printed.
