Printouts Are Blank/Blurry or Fuzzy/Streaks or Lines

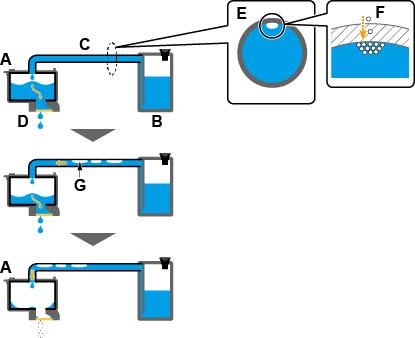

Although some air may enter the ink tube, it is not a malfunction. No problem if the nozzle check pattern is printed correctly.

1. Check1 Make sure joint button is not lifted up.

   Push the print head locking cover to make sure the print head is installed properly.

   Next, push the joint button firmly to the end.

   Finally, push the cartridge locking cover to make sure the contact protector or FINE cartridge is installed properly.

   • Check Installation of Print Head

   Important

   • Remove the orange label and the protective tape of the print head to install it.

2. Check2 Check paper and print quality settings.

   • Printout Results Are Unsatisfactory

3. Check3 Are the print head nozzles clogged?

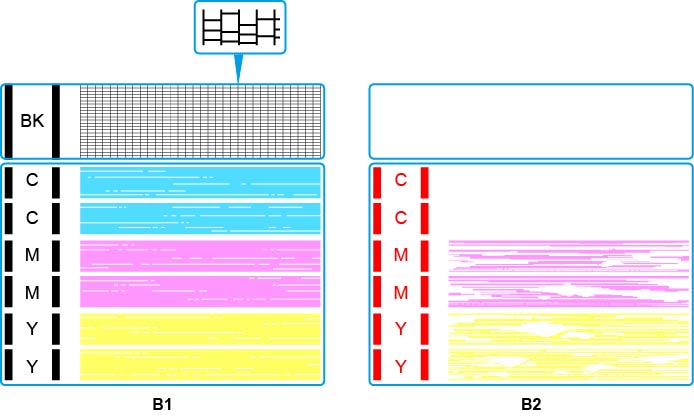

   Print the nozzle check pattern and make sure that the ink is coming out normally.

   For details on printing the nozzle check pattern, print head cleaning, and print head deep cleaning, see If Printing Is Faint or Uneven.

   • Watch the movie

   1. Step1 Print the nozzle check pattern.

      After printing the nozzle check pattern, examine the pattern.

      • Printing a Nozzle Check Pattern

      If the pattern is not printed correctly, go to the next step.

   2. Step2 Clean the print head.

      After cleaning the print head, print the nozzle check pattern and check the result.

      • Clean the print head

      If it does not improve, clean the print head again.

      If it still does not improve, go to the next step.

   3. Step3 Clean the print head deeply.

      After cleaning the print head deeply, print the nozzle check pattern and check the result.

      • Clean the print head deeply

      If it does not improve, turn off the printer, wait for more than 24 hours, and go to the next step.

   4. Step4 Clean the print head deeply again.

      After cleaning the print head deeply again, print the nozzle check pattern and check the result.

      If it still does not improve, go to the next step.

   5. Step5 Perform ink flush.

      After performing ink flush, print the nozzle check pattern and check the result.

      Ink flush consumes a great amount of ink. Frequent ink flush can rapidly consume ink, so perform it only when necessary.

      • Ink Flush

   If the nozzle check pattern is not printed correctly even after performing ink flush, check the installing condition of the print head.

   • Check Installation of Print Head

4. Check4 When an ink tank runs out of ink, refill the ink tank.

   If the remaining ink level is below the lower limit line (A), refill the ink tank.



   If you use the printer until the ink tank becomes empty, perform ink flush after refilling the ink tank.

   • Refilling Ink Tank
   • Ink Flush

5. Check5 When using paper with one printable surface, check the correct printable side of the paper.

   Printing on the wrong side of such paper may cause unclear prints or prints with reduced quality.

   When you load paper on the rear tray, load paper with the printable side facing up. When you load paper in the cassette, load paper with the printable side facing down.

   Refer to the instruction manual supplied with the paper for detailed information on the printable side.
