Cableless setup

Important

  • If you connect a device connected to the Internet via an access point to the printer that is in access point mode, the connection between the device and access point will be disabled. In that case, the connection of the device may switch to a mobile data connection automatically depending on your device. When you connect to the Internet using a mobile data connection, charges may apply depending on your contract.

    • You cannot connect to an access point and the printer that is in access point mode at the same time. If you have an access point, it is recommended that you use the access point to connect to the printer.

(Appears in a new window)

  1. Make sure that the screen below is displayed.

    If another screen is displayed, press the Setup button (A) on the printer.

    HOME screen

  2. Press the Setup button.

  3. Use the Left or Right buttons (B) to select Wireless LAN setup, then press the OK button.

    Setup menu screen: Select Wireless LAN setup

    When the screen below appears, press the OK button, then the Stop button.

    Push button method screen

  4. Select Other setup, then press the OK button.

    Wireless LAN setup screen
    arrow
    Wireless LAN setup screen: Select Other setup

  5. Select Cableless setup, then press the OK button.

    Other setup screen
    arrow
    Other setup screen: Select Cableless setup

  6. Return to the application screen and proceed with the setup.

    Follow the instructions on the PC or smartphone, etc.

Android

  1. Tap Direct Setup in the application screen.

    The printer and your device will be connected automatically.

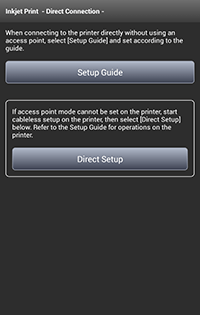

    Direct Connection screen

iOS

  1. Tap Direct Setup in the application screen.

    Printer setup screen

  2. Check the network name (SSID) displayed in the application screen, then select the network name (SSID) in Wi-Fi settings on your device.

  3. Tap OK.

    Direct Setup screen

  4. Tap Copy Password to copy the password (network key).

    Direct Setup screen

  5. In Wi-Fi settings on your device, paste the copied password (network key) to connect to the printer.
